产品概述:
FTTA非铠装基站拉远光纤跳线,接纳φ7.0mm LSZH玄色拉远光缆。两头以分支套铠的形式,加LC/SC/FC/ST的光纤毗连器,部分应用情形中,对双方分支加头的部分,接纳波纹管或者尼龙网拉环的形式举行;ず驮銮。
应用情形:
FTTA室外基站拉远牵引,RRU到BBU端口互连,3G、4G、LTE以及漫衍式基站,电力通讯系统等。

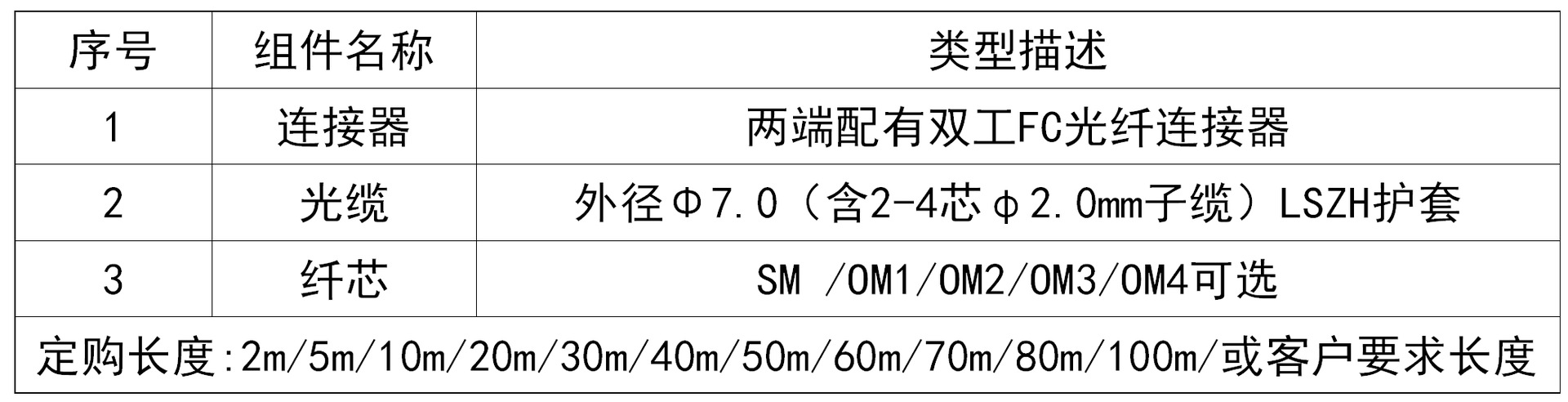

拉远光缆结构:
跳线手艺参数:
毗连器标准:YD/T895-1997
光纤标准:IEC 60793&GB/T 9771&GB/T 12357,ISO 11801,ITU/T G65x
插入消耗:SM≤0.4 dB/km@1310nm,MM≤0.65db/km@850nm>
抗拉力:400N(短期) 200N(恒久)
抗激动:1000N/100mm(短期) 300N/100mm(恒久)
最小弯曲半径:20D(动态) 10D(静态)
运行温度:-40℃~+80℃
切合ROHS
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
