波分复用器
Ultra Compact CWDM / 微型 CWDM 器件系列
Description
Ultra Compact CWDM / 微型 CWDM 器件系列
产品特点/ Features
● Low insertion loss.
● High wavelength accuracy
● Extended temperature range
● Excellent thermal stability
● Extremely small size
产品应用/ Applications
● High speed transceivers
● CWDM systems
● Metro and Access networks
● CATV network

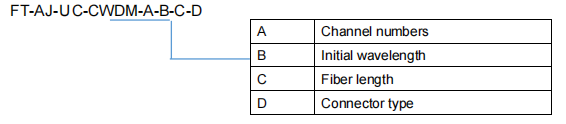

订购参数确认 / Order information

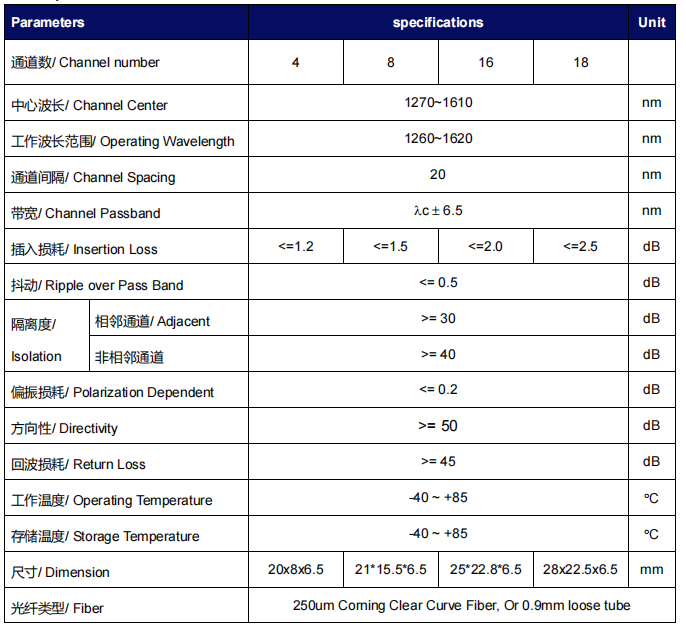

Main specifications

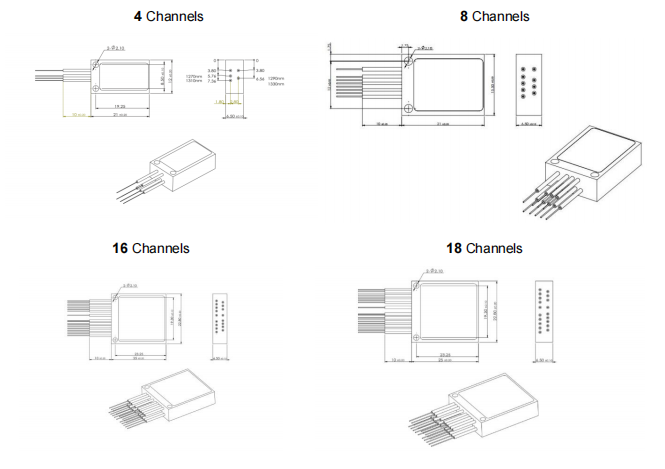

产品尺寸/Mechanical Dimensions
注：本产品有天下产化型号可选
本产品为FT-AJ系列波分复用器 ，仅展示部分参数 ，若有需要 ，请联系尊龙凯时。
Important Notice
